a high-performance 5-Port Gigabit Desktop Switch designed to streamline connectivity for small businesses, offices, and smart homes. Featuring 4 PoE+ ports, this compact switch delivers both data and power through a single Ethernet cable, making it ideal for IP cameras, VoIP phones, and wireless access points.

✨ Key Features:

⚡ 4 PoE+ Ports (IEEE 802.3af/at compliant)
Supports up to 30W per port with a total 65W PoE power budget—perfect for powering multiple devices simultaneously.
🚀 5 Gigabit Auto-Negotiation Ports
Provides blazing-fast data transfer speeds for seamless video streaming, online conferencing, and smart networking.
🔧 Plug-and-Play Setup
No software or configuration needed—just plug in and enjoy hassle-free connectivity.
🛡️ Advanced QoS for Smooth Traffic
Prioritizes time-sensitive data like video and voice to ensure lag-free communication.
🏗️ Durable Metal Housing
Compact and robust design ensures longevity and heat dissipation for 24/7 operation.
🔌 Intelligent Power Management
Automatically protects from overload by cutting power to lower-priority ports, keeping your vital devices powered.
Whether you’re setting up surveillance systems, powering smart devices, or expanding your business network, the TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4 PoE+ ports offers the performance, reliability, and flexibility you need. Experience a smarter, more powerful network—effortlessly.

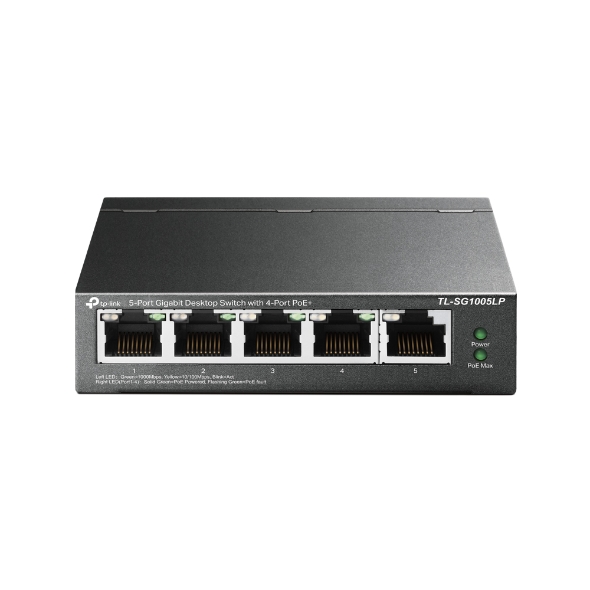

5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports^*
Requires no configuration and installation

Learn more about TP-Link PoE technology >

Buy Now

Professional High-Power 5-Port Gigabit Switch
with 4 PoE+ Ports

Plug and Play

TL-SG1005P

65 W PoE Budge

Plug and Play

Multicast Optimization

QoS for Traffic
Prioritization

Intelligent Power
Management

Durable Metal Casing

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

4 PoE+ Ports
Up to 30 W on Each Port
Total 65 W Power Budget

TL-SG1005P

Router

Internet

Surveillance
IP Camera

Conference Calls
IP Phone

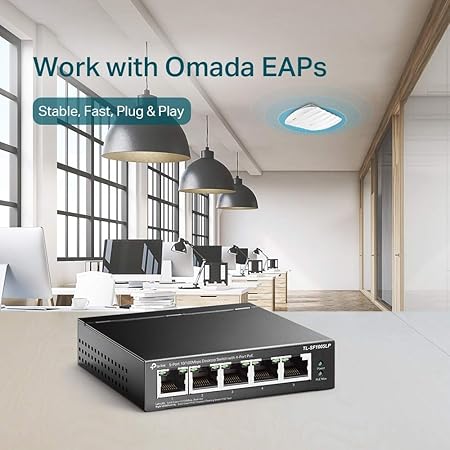

Wi-Fi Coverage
Access Point

Plug and Play, No Configuration Required

Plug In
Connect Devices
Enjoy

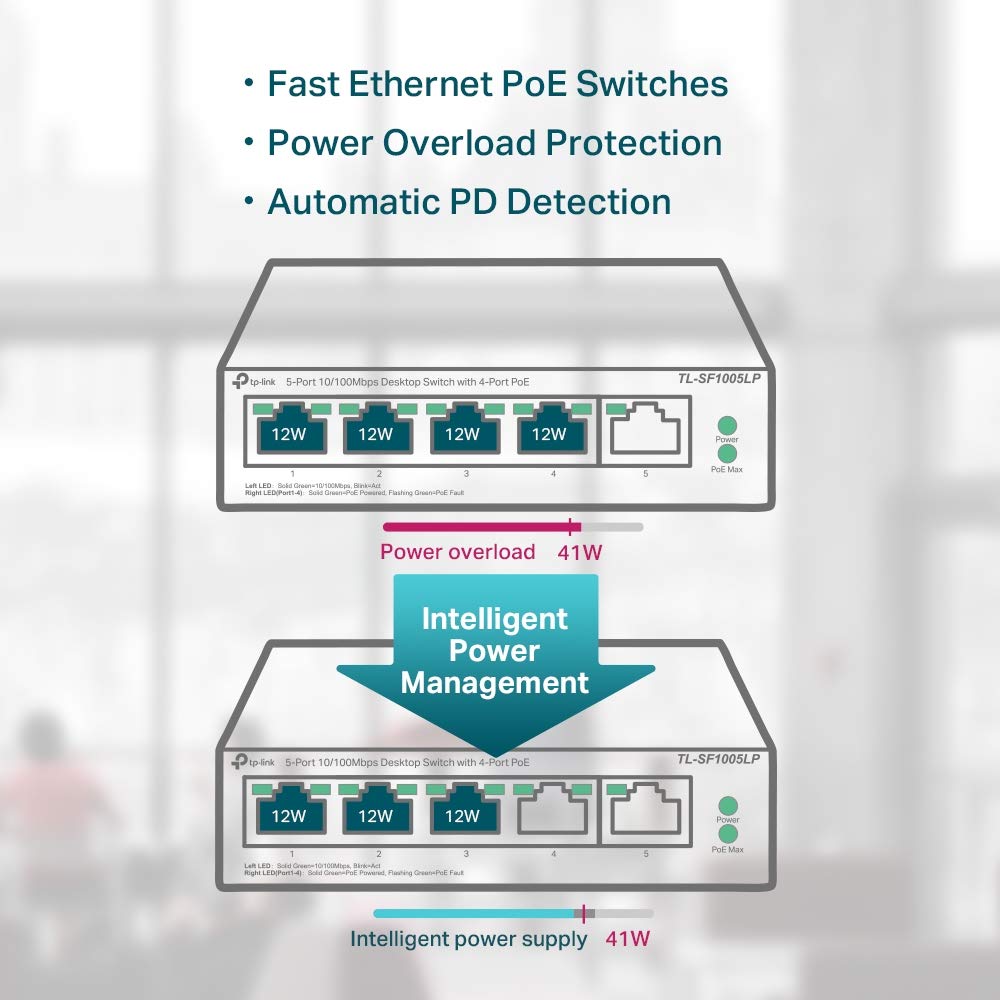

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Power overload65WIntelligent Power ManagementIntelligent power supply65W

Advanced Functions for Higher Performance

QoS

For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP

Snooping

Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing

The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.
