Designed to deliver seamless internet connectivity, this router is perfect for ensuring robust performance in large homes.
Key Features:
- Reliable Whole-Home Coverage
- Provides stable connectivity for large spaces with internet speeds up to 100 Mbps.
- High-Speed Dual-Band Wi-Fi
- Offers 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
- Advanced Networking Technologies
- Features MU-MIMO, Beamforming, and fast roaming for enhanced performance.
- User-Friendly Setup
- Simple installation process with auto-syncing capabilities for multiple units.
- Convenient Management
- Control your network remotely using the Cudy App for local and cloud access.
The CUDY AC1200 Mesh Wi-Fi Router combines high-speed connectivity, advanced features, and ease of use, making it an excellent choice for modern households seeking uninterrupted internet access.

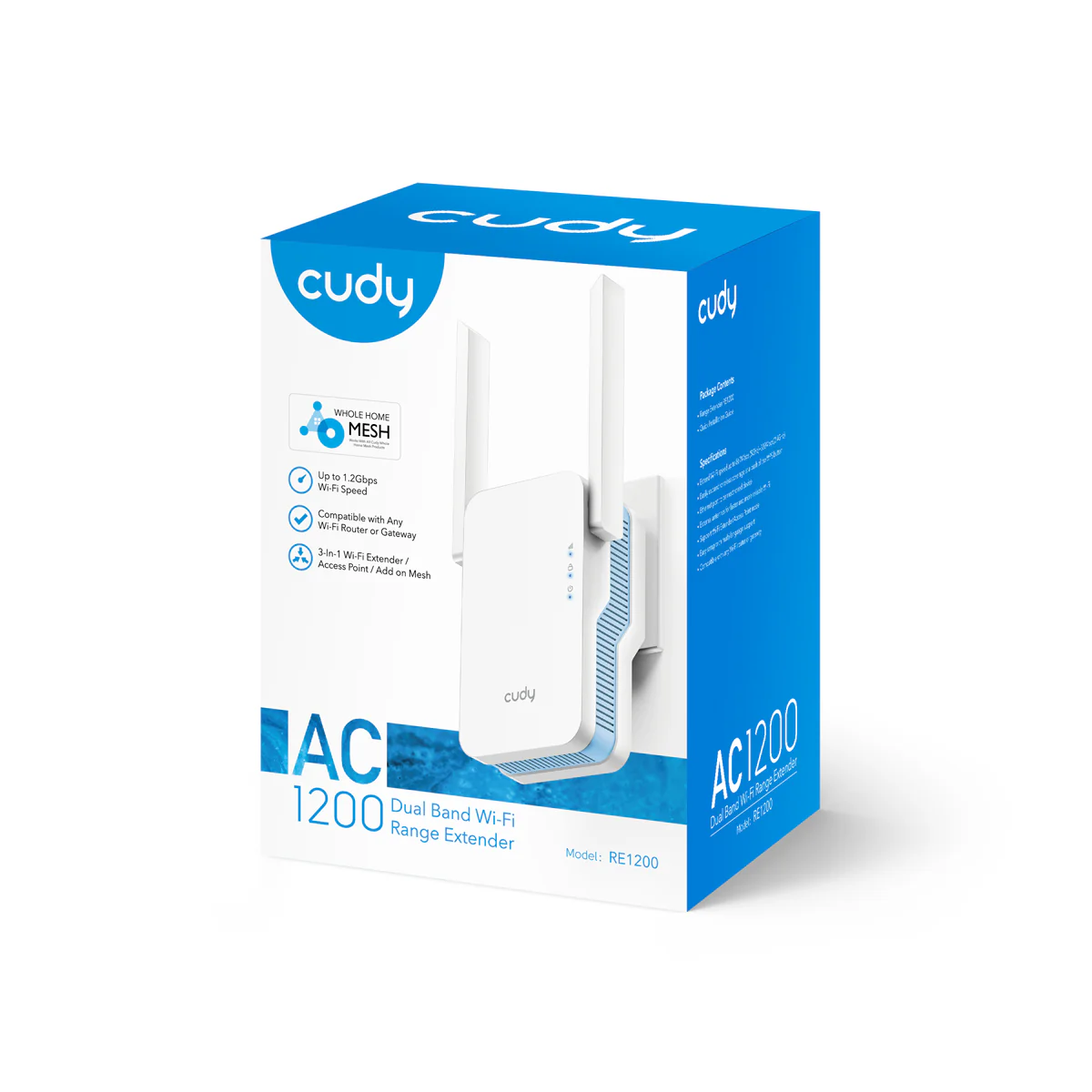

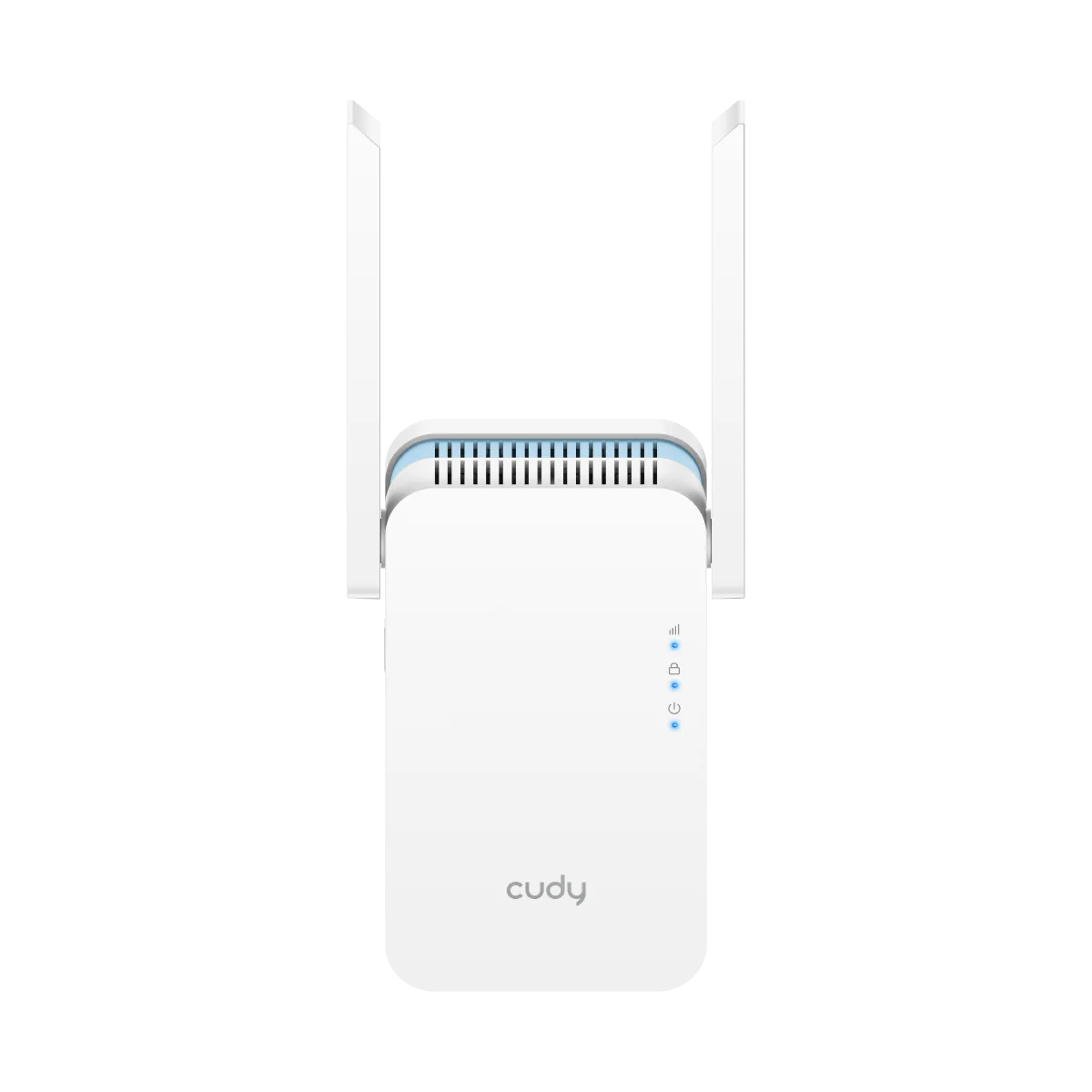

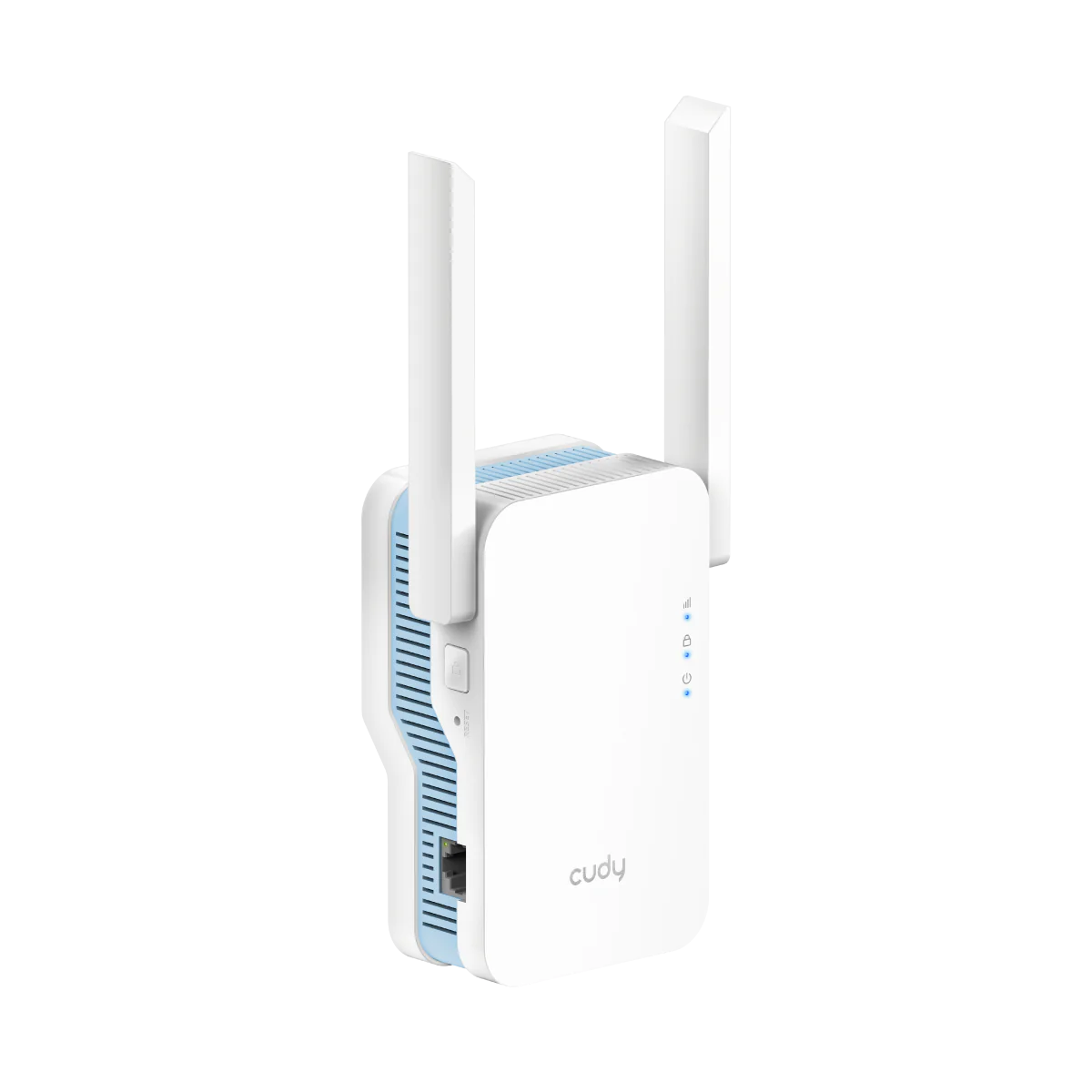

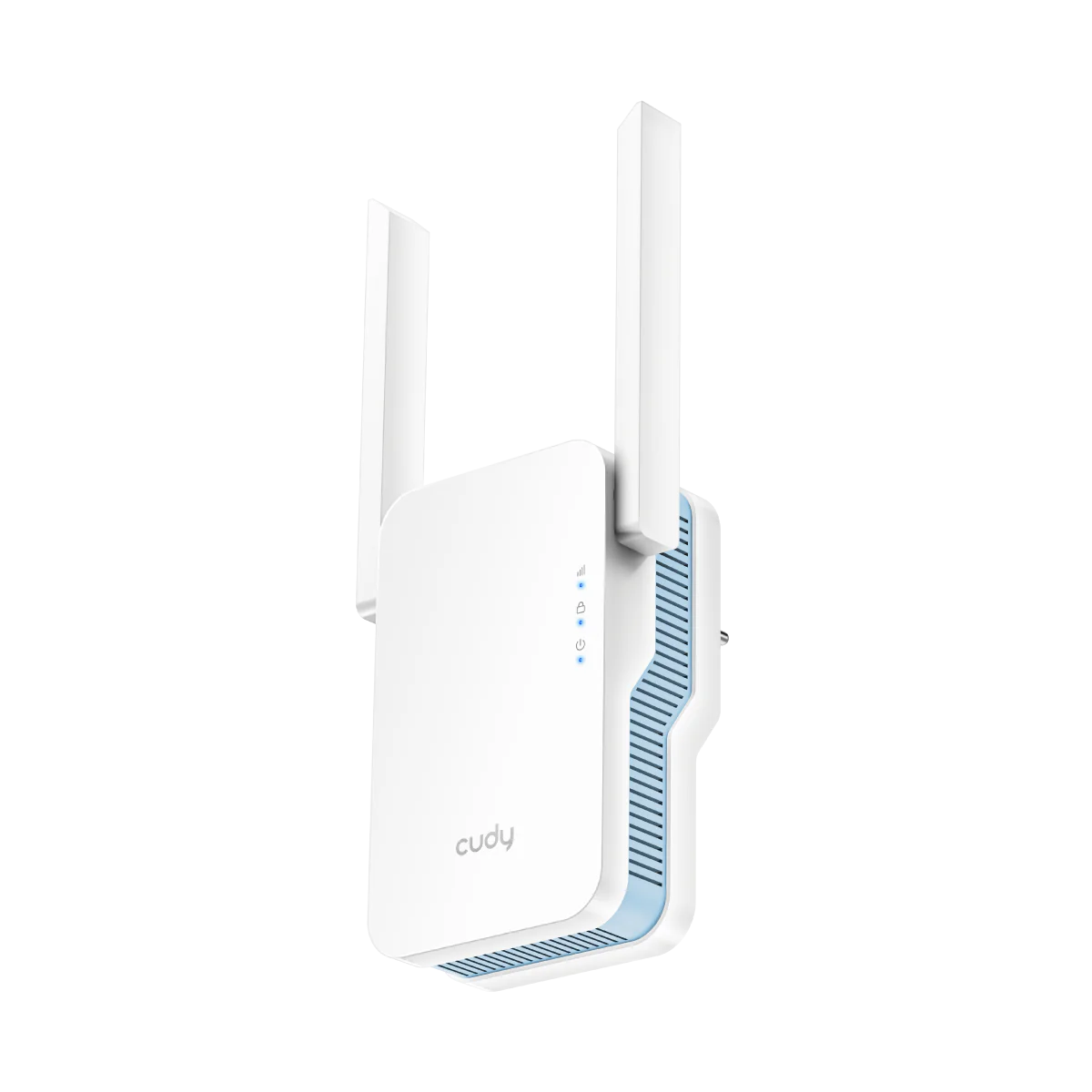

AC1200 Mesh Wi-Fi Range Extender
RE1200
A range extender featuring AC1200 WiFi and an Ethernet port. Press its WPS buttons to expand the existing Wi-Fi instantly.
- Works with Any Wi-Fi Router
- Dual-Band Wi-Fi 5
- 1× Fast Ethernet Port
- 30 Connected Devices 1
- Cudy Mesh Satellite
- Multi-Band Simultaneous Backhaul
- Ethernet Backhaul
| Model Version | RE1200 1.0 | |
|---|---|---|
| CPU | Chipset | MT7628A+MT7613B |
| CPU Details | 580 MHZ Single-Core, MIPS24KEC | |
| Memory/Storage | Flash/ROM | 8 MB (64 Mbit ) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR2 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 2× Fixed | |
| FEM or PA/LNA |
|
|
| Range Performance | Max: 150 m (492 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|
| Wall Performance | One wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) |
|
| Interfaces | 10/100 Mbps RJ45 Ports | 1 |
| LED |
|
|
| Physical Buttons |
|
|
| Power Input | AC Plug | |
| Power Input Note | EU, US, UK plug are available on corresponding region versions | |
| Power | Power Methods | AC |
| AC | 110V ~ 220V | |
| Reliability | Environment | Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Certifications | FCC, CE | |
| Mechanical | Install in a Daisy Chain | Recommend to install less than 3 repeaters in a wireless chain. |
| Installation | Plug-In-Socket | |
| Casing Material | Plastic | |
| Dimension | 129.6×80×48.6 mm 5.1×3.15×1.91 inches |
|
| Product Weight |
|
|
| Package Content |
|
|
| Ordering Information | Retail Package Weight |
|
| Retail Package Dimension | 161×120×96 mm 6.34×4.72×3.78 inches |
|
| Units per Carton | 30 | |
| Carton Net Weight |
|
|
| Carton Gross Weight |
|
|
| Carton Dimension | 50.4×37.7×34.1 cm 19.84×14.84×13.43 inches |
|
| Model Version | RE1200 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 30 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2) | |
| WPS | true | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh Satellite | |
| Mesh Backhaul |
|
|
| Multi-Band Backhaul | true | |
| System | LED Control | true |
| Local Control Method |
|
|
| Remote Control Method | App Control | |
| Firmware Upgrade |
|
|
| Reliability |
|
|
| Dashboard | Panel | Connected Devices, Host Network Status, Wi-Fi Status, LAN Status, System Version |
| Charts | Mesh Topology | |
| System | Diagnostic Tools |
|
- Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices.
